Product Details
It is used for the personalized perforation of leather products such as shoes, bags, belts, sofas, etc.
It can punch 4‒6 different patterns on a single leather piece.
It is suitable for leather processing and perforating workshops.

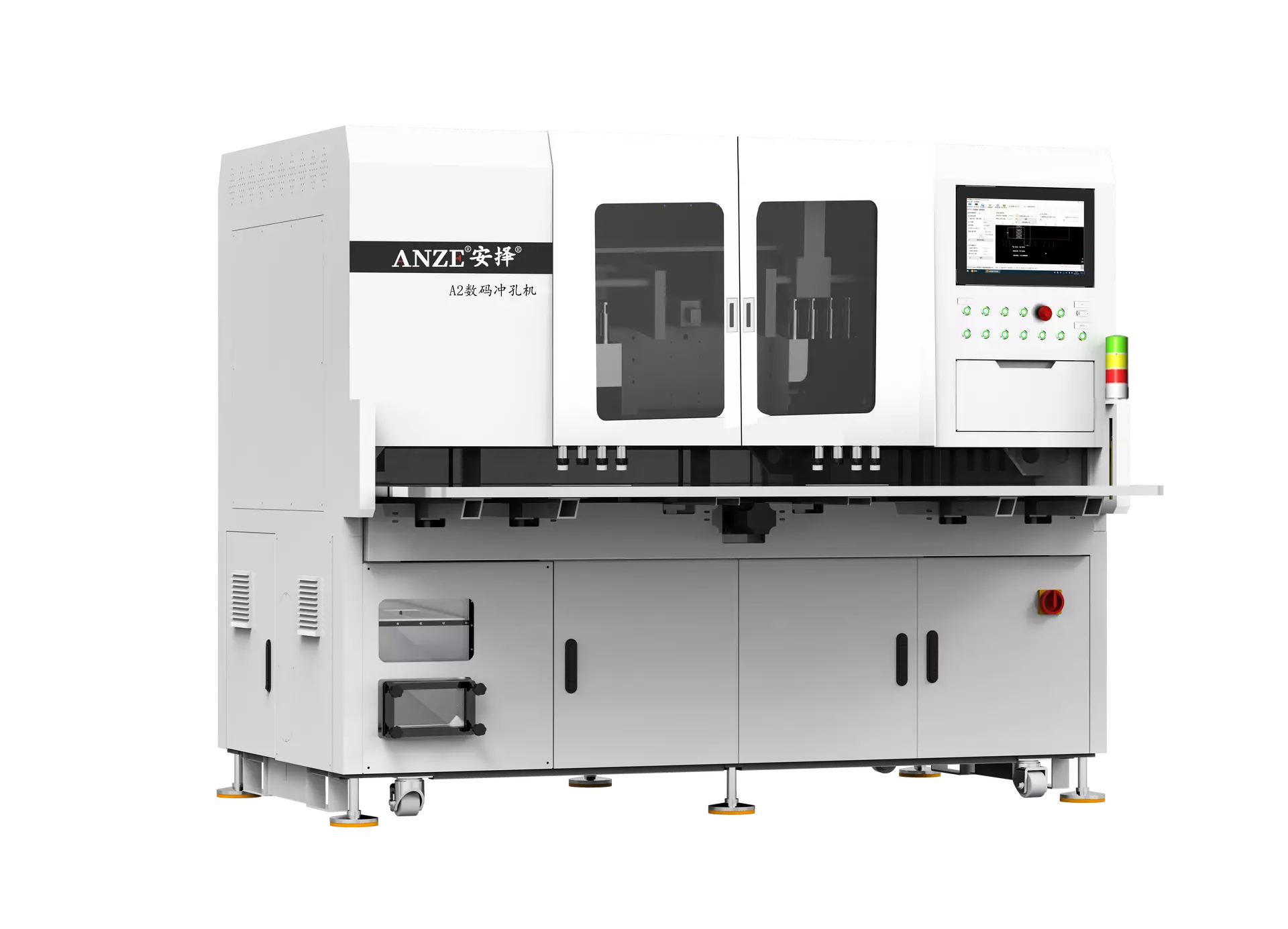

A2 SERIES CNC LEATHER PERFORATION MACHINE
| Machine Features |
| ● Personalized perforation accordingtothe drawings. |
| ● Each product type (shoes, bags, belts) hasits own dedicated perforation route for high efficiency. |
| ● Rotary perforationheads lead toany combination of holes, each perforation head can rotate for 360. |
| ● Unique function of breakpoint resume. |
| ● Self-developed automatic waste collection system, front-side waste removal, compact size. |

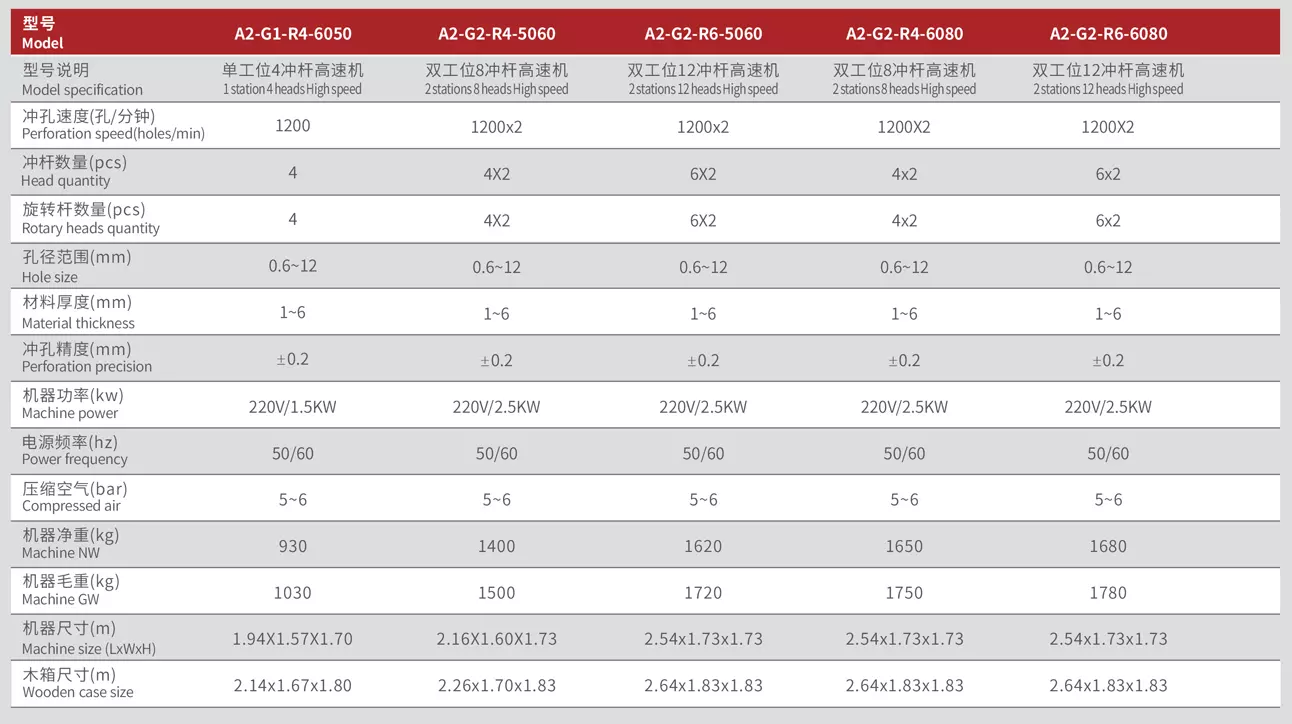

Machine parameters
| Model | A2-G1-R4-6050 | A2-G2-R4-5060 | A2-G2-R6-5060 | A2-G2-R4-6080 | A2-G2-R6-6080 |
| Model specification | 1station4headsHighspeed | 2station8headsHighspeed | 2station12headsHighspeed | 2station8headsHighspeed | 2station12headsHighspeed |
| Perforation speed (holes/min) | 1200 | 1200X2 | 1200X2 | 1200X2 | 1200X2 |
| Head quantity (pce) | 4 | 4X2 | 6X2 | 4X2 | 6X2 |
| Rotary heads quantity (pce) | 4 | 4X2 | 6X2 | 4X2 | 6X2 |
| Hole size (mm) | 0.6~12 | 0.6~12 | 0.6~12 | 0.6~12 | 0.6~12 |
| Material thickness (mm) | 1~6 | 1~6 | 1~6 | 1~6 | 1~6 |
| Perforation precision (mm) | ±0.2 | ±0.2 | ±0.2 | ±0.2 | ±0.2 |
| Machine power (kw) | 220V/1.5KW | 220V/2.5KW | 220V/2.5KW | 220V/2.5KW | 220V/2.5KW |
| Power frequency (hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Compressed air (bar) | 5~6 | 5~6 | 5~6 | 5~6 | 5~6 |
| Machine NW (kg) | 930 | 1400 | 1620 | 1650 | 1680 |
| Machine GW (kg) | 1030 | 1500 | 1720 | 1750 | 1780 |
| Machine size (LxWxH) | 1.94X1.57X1.70 | 2.16X1.60X1.73 | 2.54X1.73X1.73 | 2.54X1.73X1.73 | 2.54X1.73X1.73 |
| Wooden case size (m) | 2.14X1.67X1.80 | 2.26x1.70x1.83 | 2.64X1.83X1.83 | 2.64X1.83X1.83 | 2.64X1.83X1.83 |
