Product Details
It is used to punch holes in leather for car seats covers, headrests covers, steering wheel covers, sofas, sho euppers, bags, etc.
It is easy to operate with stable performance and high efficiency.
It is suitable for leather factories, leather traders, car seat cover factories, and dedicated perforation workshops.

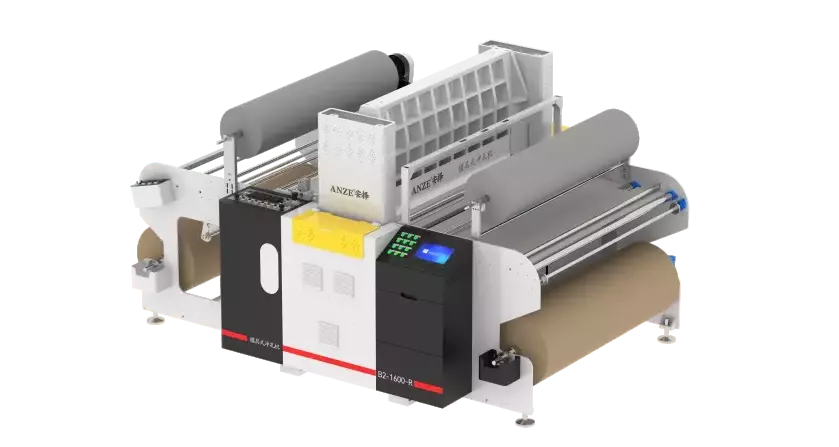

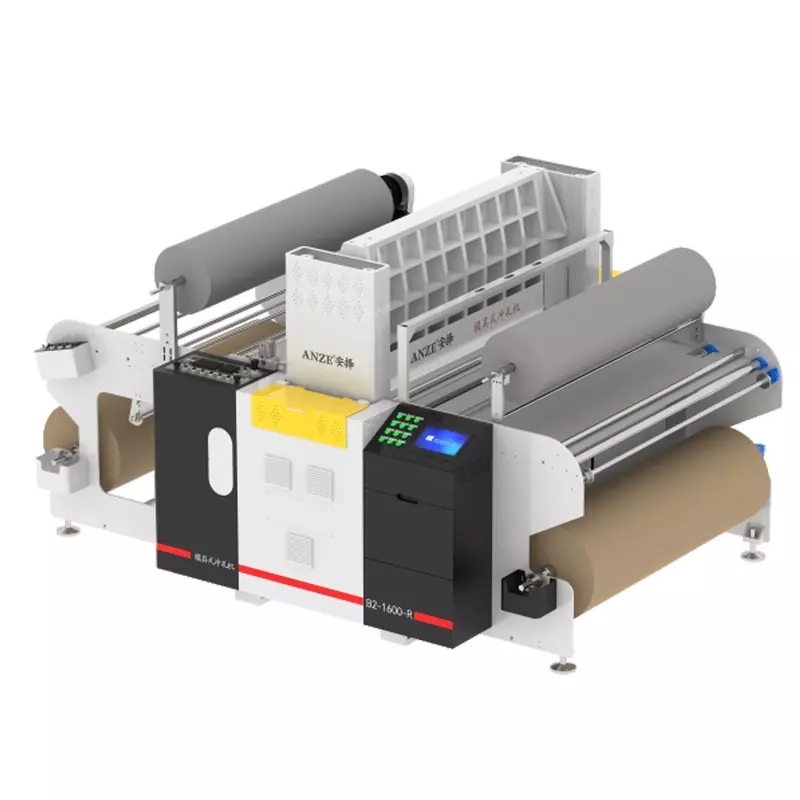

B2 SERIES DIE PERFORATION MACHINE
| Machine Features |
| ● Automatic paper roll unwinding and paper feeding. |
| ● Automatic leather roll unwinding and leather feeding(only equipped for coil feeding equipment). |
| ● Automatic die locking makes die installation finished within 10 seconds. |
| ● Automatic die height adjustment finishes within 10 seconds. |
| ● Automatic leather rewinding(only equipped for coil feeding equipment). |
| ● Automatic paper rewinding. |
| ● Only 1 operator can easily operate the machine. |
| ● An ordinary worker can be capable by taking 1 day's training. |

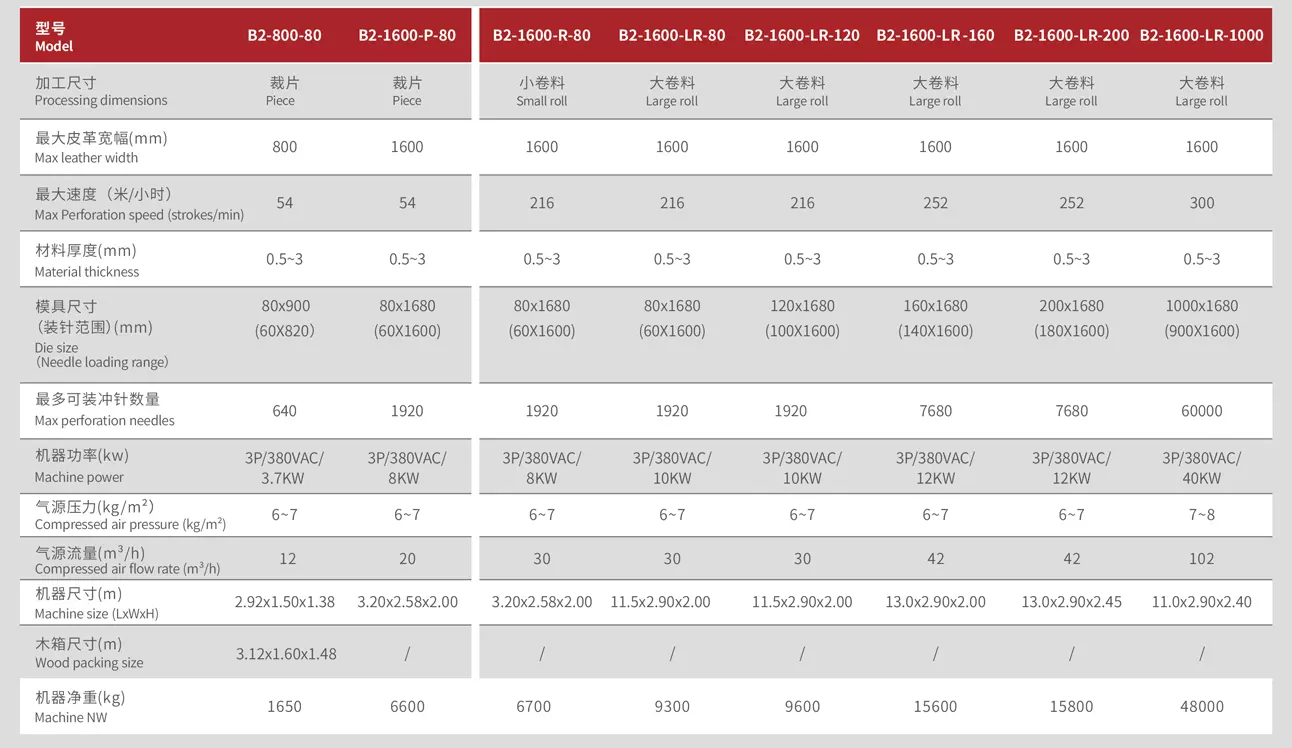

Machine parameters
| Model | B2-800-80 | B2-1600-P-80 | B2-1600-R-80 | B2-1600-LR-80 | B2-1600-LR-120 | B2-1600-LR-160 | B2-1600-LR-200 | B2-1600-LR-1000 |
| Processing dimensions | Piece | Piece | Small roll | Large roll | Large roll | Large roll | Large roll | Large roll |
| Max leather width | 800 | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Max Perforation speed (strokes/min) | 54 | 54 | 216 | 216 | 216 | 252 | 252 | 300 |
| Material thickness(mm) | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 |
| Die size(Needle loading range) | 80x900(60x820) | 80x1680(60X1600) | 80x1680(60X1600) | 80x1680(60X1600) | 120x1680(100X1600) | 160x1680(140X1600) | 200x1680(180X1600) | 1000x1680(900X1600) |
| Max perforation needles | 640 | 1920 | 1920 | 1920 | 1920 | 7680 | 7680 | 60000 |
| Machine power(kw) | 3P/380V AC/3.7KW | 3P/380V AC/8 KW | 3P/380V AC/8 KW | 3P/380V AC/10 KW | 3P/380V AC/10 KW | 3P/380V AC/12 KW | 3P/380V AC/12KW | 3P/380V AC/40 KW |
| Compressed air pressure (kg/m²) | 6~7 | 6~7 | 6~7 | 6~7 | 6~7 | 6~7 | 6~7 | 6~7 |
| Compressed air flow rate (m³/h) | 12 | 20 | 30 | 30 | 30 | 42 | 42 | 102 |
| Machine size (LxWxH)(m) | 2.92x1.50x1.38 | 3.20x2.58x2.00 | 3.20x2.58x2.00 | 11.5x2.90x2.00 | 11.5x2.90x2.00 | 13.0x2.90x2.00 | 13.0x2.90x2.45 | 11.0x2.90x2.40 |
| Wood packing size(m) | 3.12x1.60x1.48 | / | / | / | / | / | / | / |
| Machine NW(kg) | 1650 | 6600 | 6700 | 9300 | 9600 | 15600 | 15800 | 4800 |
