Product Details

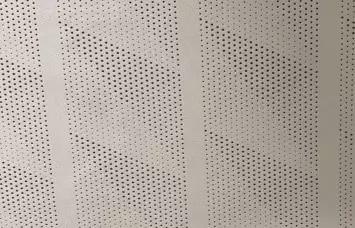

Primarily used for perforating roll materials in the automotive interior industry, it is particularly suitable for high-volume mass production andcustom pattern punching.
The machine offers high perforating efficiency, high output, stableperformance,and is simple and easy to use.
It is suitable for use by leather manufacturers, leather traders, automotive seat cover manufacturers, and perforating processing plants.

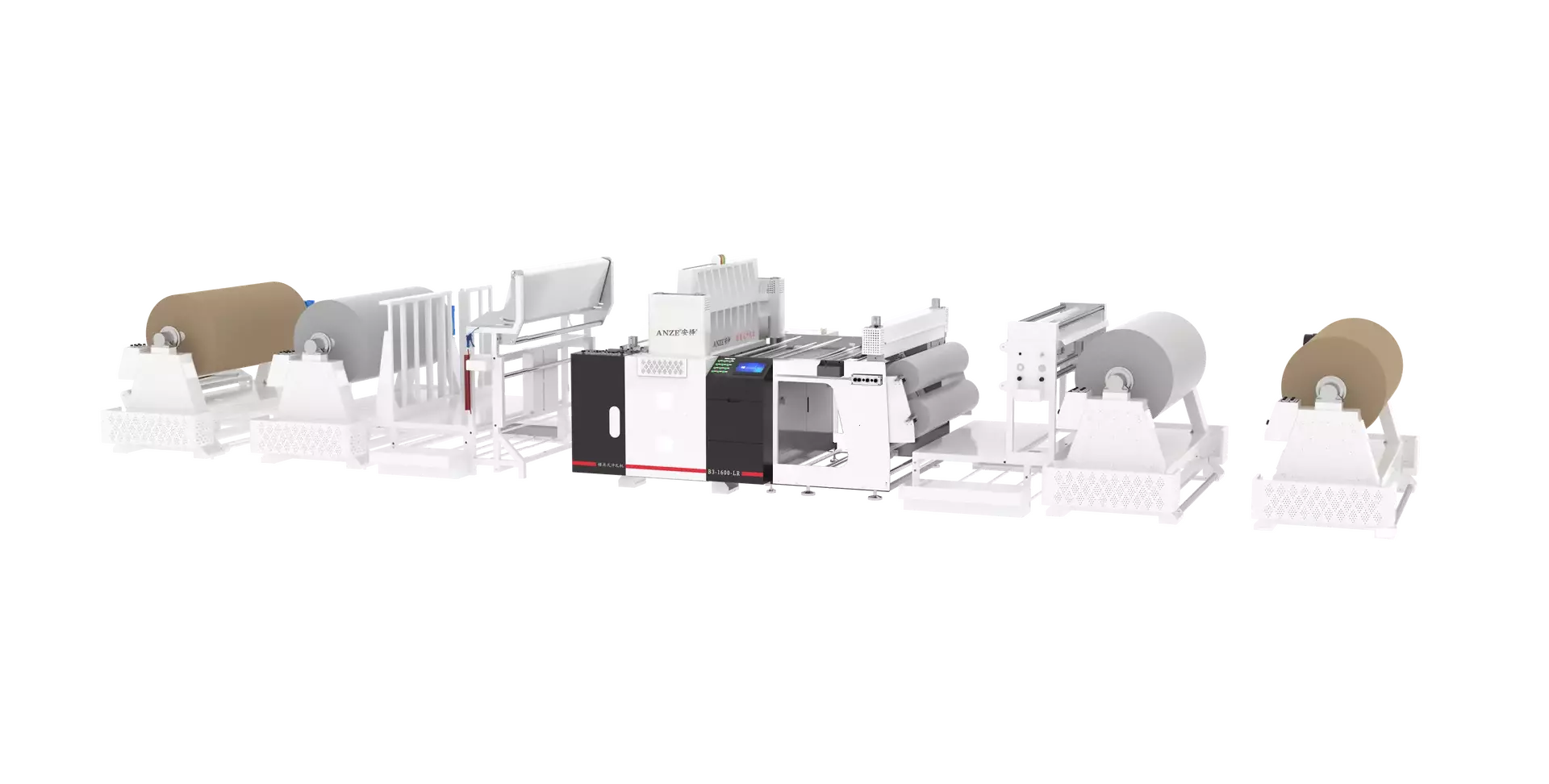

B3 SERIES DIE PERFORATION MACHINE
|
Machine Features
|
|
● A set of movable dies, combined with the movement of the leather, can produce countless patterns, save die costs.
|
|
● Computer typesetting, computer archiving, lots of patterns.
|
|
● Automatic paper feeding, automatic paper unwinding.
|
|
● Automatic leather feeding, automatic leather unwinding (only equipped for coil feeding equipment).
|
|
● Automatic Die locking can be completed within 10 seconds.
|
|
● Automatic Die adjustment can be completed within 10 seconds.
|
|
● Automatic leather rewinding(only equipped for coil feeding equipment).
|
|
● Automatic paper rewinding.
|
|
● Ordinary worker can be capable after accept one day training.
|
|
● The whole machine only needs one person to operate, save both time and cost.
|
Machine parameters
| Model | B3-800PLUS-150 | B3-800PLUS-350 | B3-1600-R-80 | B3-1600-LR-80 | B3-1600-LR-120 | B3-1600-LR-160 | B3-1600-LR-200 |
| Processing dimensions | Piece | Piece | Small roll | Large roll | Large roll | Large roll | Large roll |
| Max leather width | 800 | 800 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Max Perforation speed (strokes/min) | 54 | 54 | 216 | 216 | 216 | 252 | 252 |
| Material thickness(mm) | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 |
| Die size(Needle loading range) | 150x620(130X600) | 350x900(320X800) | 80x1680(60X1600) | 80x1680(60X1600) | 120x1680(100X1600) | 160x1680(140X1600) | 200x1680(180X1600) |
| Max perforation needles | 1920 | 7680 | 1920 | 1920 | 1920 | 7680 | 7680 |
| Machine power(kw) | 3P/380V AC/6KW | 3P/380V AC/8 KW | 3P/380V AC/8 KW | 3P/380V AC/10 KW | 3P/380V AC/10 KW | 3P/380V AC/12 KW | 3P/380V AC/12KW |
| Compressed air pressure (kg/m²) | 6~7 | 6~7 | 6~7 | 6~7 | 6~7 | 6~7 | 6~7 |
| Compressed air flow rate (m³/h) | 15 | 15 | 30 | 30 | 30 | 42 | 42 |
| Machine size (LxWxH)(m) | 3.25x1.95x1.90 | 4.20x2.15x2.48 | 3.20x2.58x2.00 | 11.5x2.90x2.00 | 11.5x2.90x2.00 | 13.0x2.90x2.00 | 13.0x2.90x2.45 |
| Wood packing size(m) | 3.35x2.05x2.00 | / | / | / | / | / | / |
| Machine NW(kg) | 4650 | 7650 | 7100 | 9700 | 9950 | 16200 | 16400 |
