Product Details
It is used to punch holes in leather for car seats, headrests,steering wheel covers,sofas, shoe uppers,bags and so on; it is easy to operate with stable performance and high efficiency; it's suitable for leather factories, leather traders,car seat cover factories,and dedicated perforation workshops.

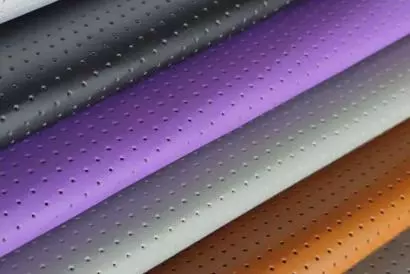

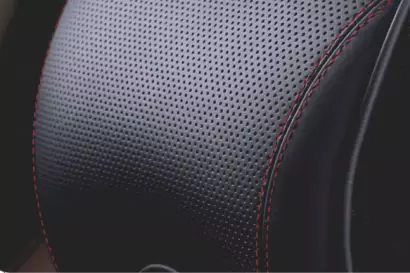

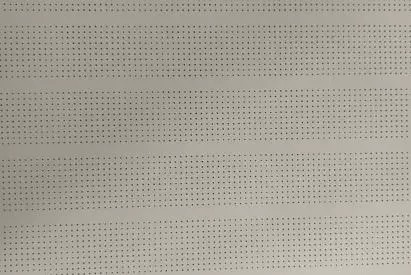

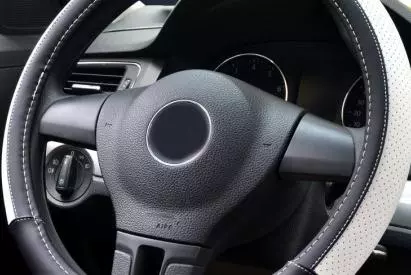

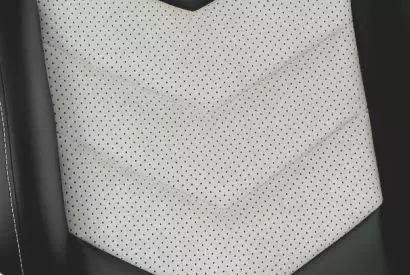

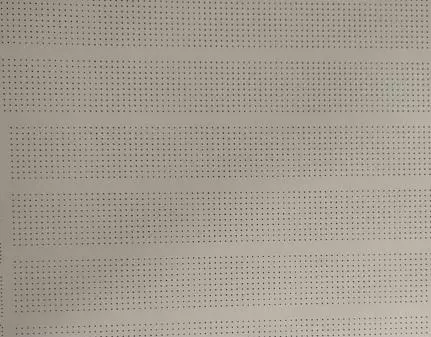

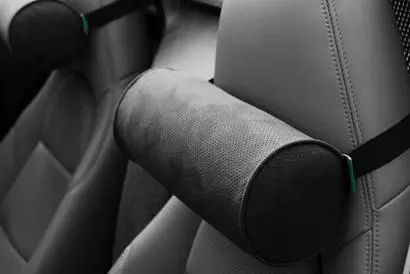

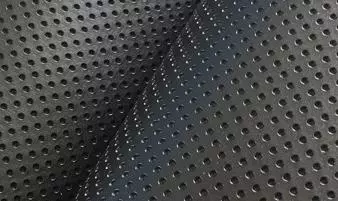

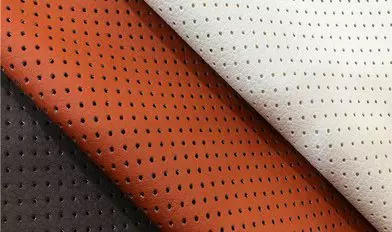

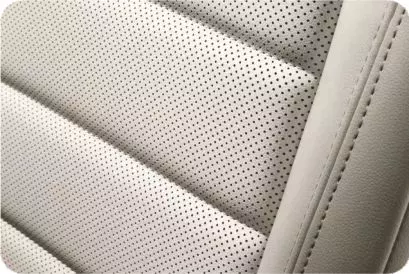

Perforated sample
Machine parameters

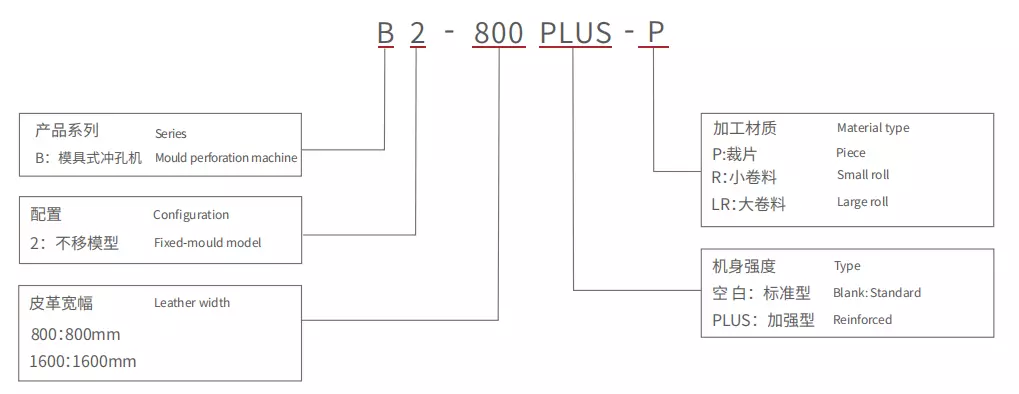

| 型号 Model |
B2-800 | B2-800PLUS | B2-1600-P | B2-1600-R | B2-1600-LR |
| 加工材质 Material type |
裁片 Piece |
裁片 Piece |
裁片 Piece |
小卷料 Small roll |
大卷料 Large roll |
| 最大皮革宽幅(mm) Max., leather width |
800 | 800 | 1600 | 1600 | 1600 |
| 最大速度(次/分钟) Max.,perforation speed (strokes/min) |
180 | 180 | 180 | 360 | 360 |
| 材料厚度(mm) Material thickness |
0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 |
| 最多可装冲针数量 Number of perforation needles |
640 | 1920 | 1920 | 1920 | 1920 |
| 机器功率(kW) Machine power |
3P/380VAC/4.5kW | 3P/380VAC/6kW | 3P/380VAC/8kw | 3P/380VAC/8kw | 3P/380VAC/10kW |
| 机器尺寸(mxmxm) Machine size |
2.92x1.50x1.38 | 3.10x1.70x1.60 | 3.00x2.40x2.00 | 6.0x2.80x2.40 | 11.0x2.90x2.40 |
| 木箱尺寸(mxmxm) Wood packing size |
3.12x1.60x1.48 | 3.20x1.80x1.70 | / | / | / |
| 机器净重(kg) Machine net weight |
1650 | 4550 | 5500 | 6800 | 7800 |
