Product Details
It is economical, light and compact machine for repacking market; it is suitable for repacking workshops,sample room of car seat factories anddedicated perforation workshops.

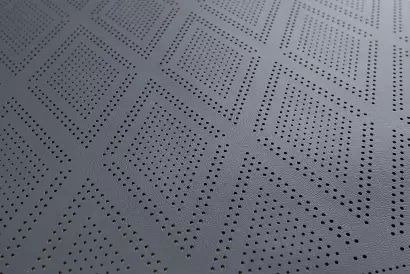

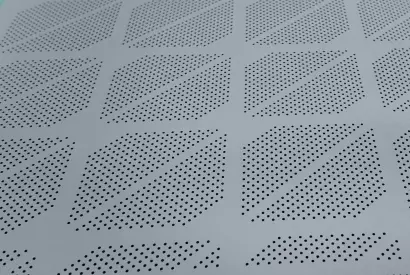

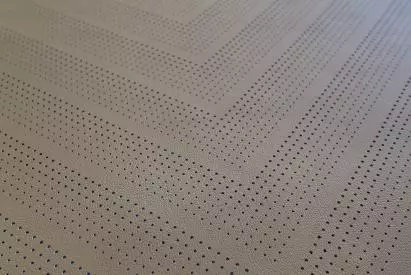

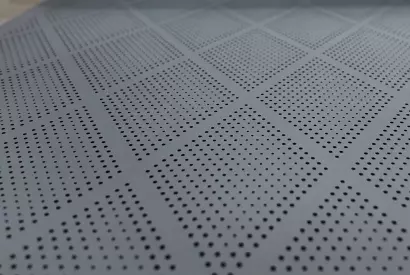

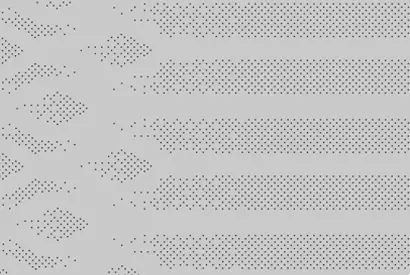

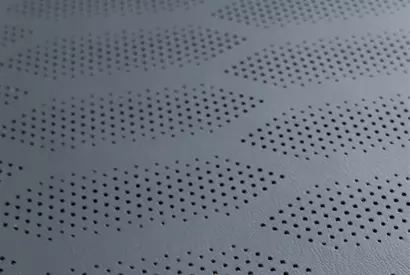

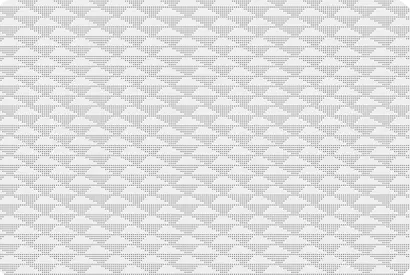

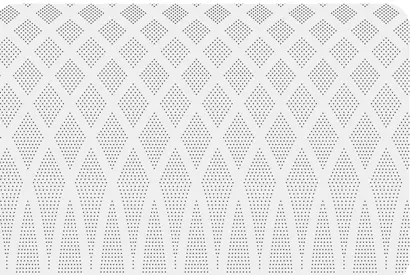

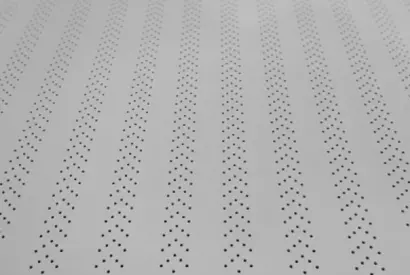

Perforation samples
Machine parameters
| 型号 Model |
A1-S1-4-6090 | A1-S1-6-80100 | A1-S2-6-70100 |

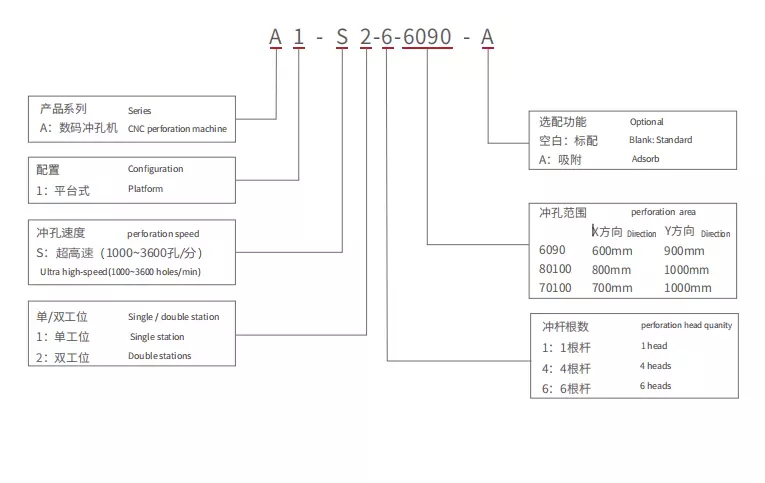

| 型号说明 Model Specification |
单工位4冲杆高速机 Istation 4heads Highspeed |
单工位6冲杆高速机 Istation6 heads Highspeed |
双工位12冲杆高速机 Istations 12 heads Highspeed |
| 冲孔范围(mmXmm) perforation area |
600x900 | 800x1000 | (700x1000)x2 |
| 冲孔速度(次/分钟) perforation speed(holes/min) |
1000 | 1000 | 1800x2 |
| 孔径范围(mm) Hole size |
0.6~3 | 0.6~3 | 0.6~3 |
| 冲杆数量(pcs) perforation head quantity |
4 | 6 | 6x2 |
| 机器功率(kW) Machine power |
220V/1.2kW | 220V/1.2kW | 220V/3kW |
| 机器净重(kg) Machine net weight |
1000 | 1000 | 1960 |
| 机器毛重(kg) Gross weight |
1100 | 1100 | 2100 |
| 机器尺寸(m*m*m) Machine size |
1.64x1.26x1.38 | 1.77x1.62x1.36 | 2.25x2.00x1.53 |
| 木箱尺寸(m*m*m) Wood packing size |
1.74x1.36x1.58 | 1.87x1.70x1.65 | 2.35x2.10x1.63 |
