Product Details

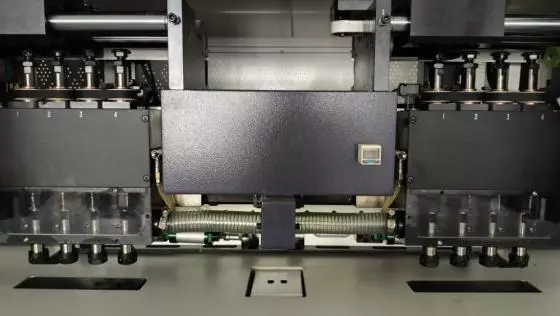

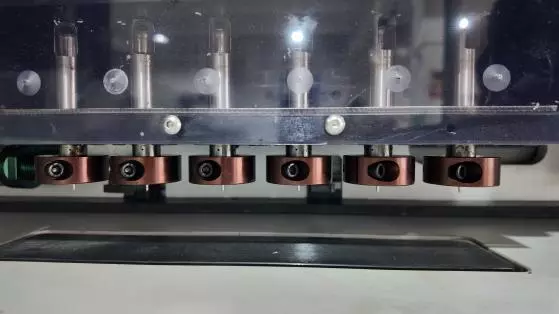

It is used for personalized perforation for automotive upholstery industry; it can punch 4-6 different patterns in the same leather piece; suitable for car seat cover factories, and automobile repacking market.

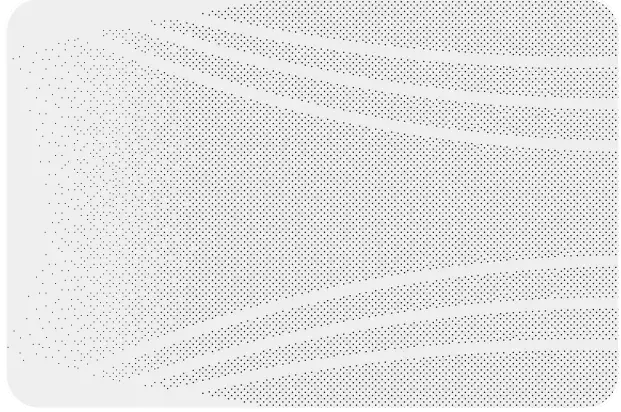

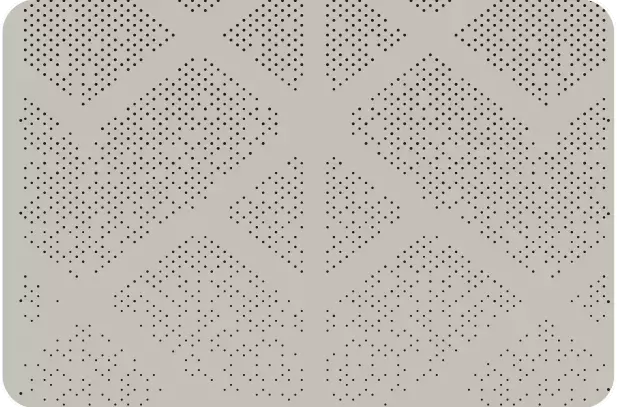

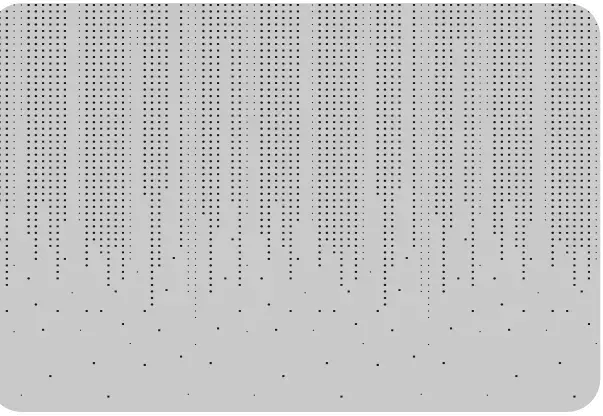

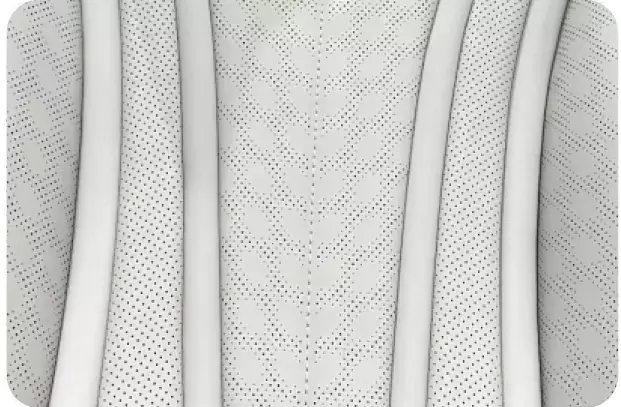

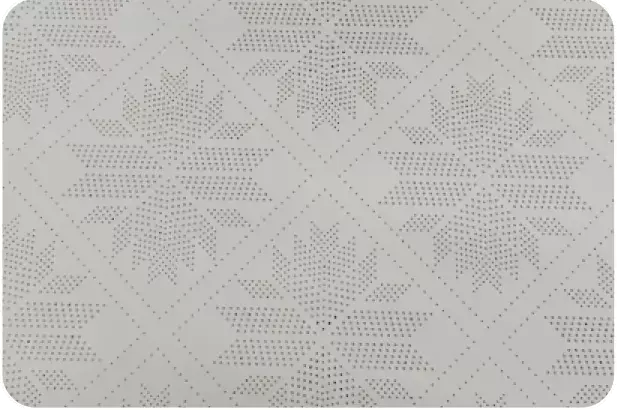

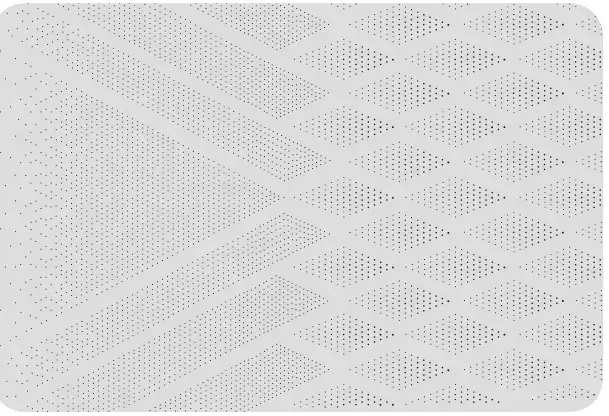

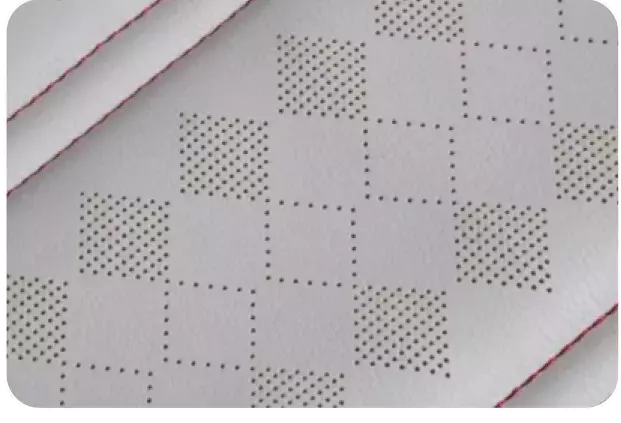

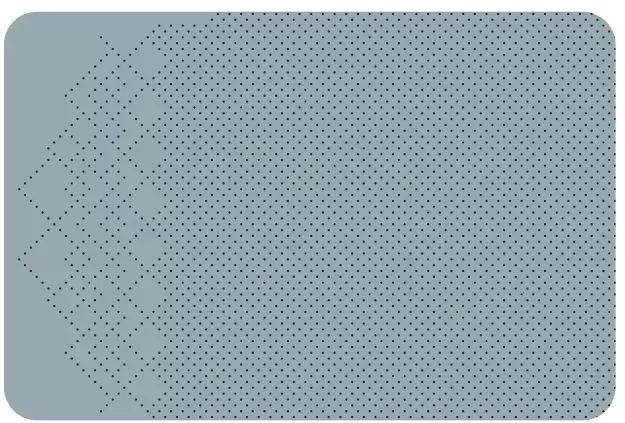

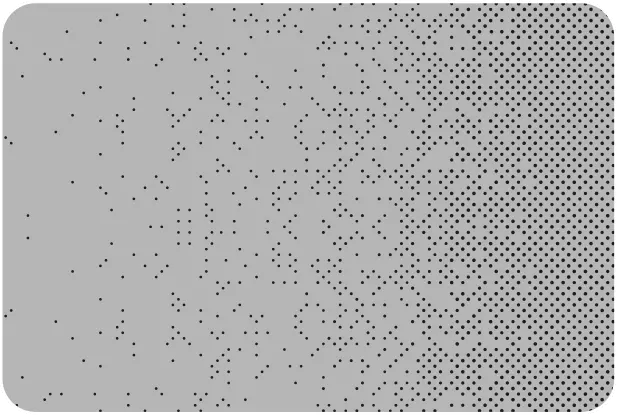

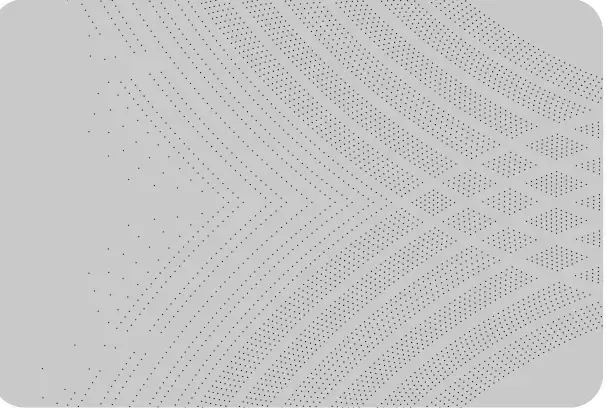

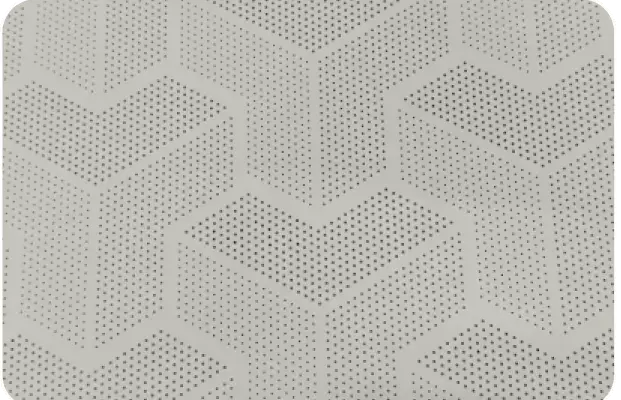

Perforated samples
Machine parameters

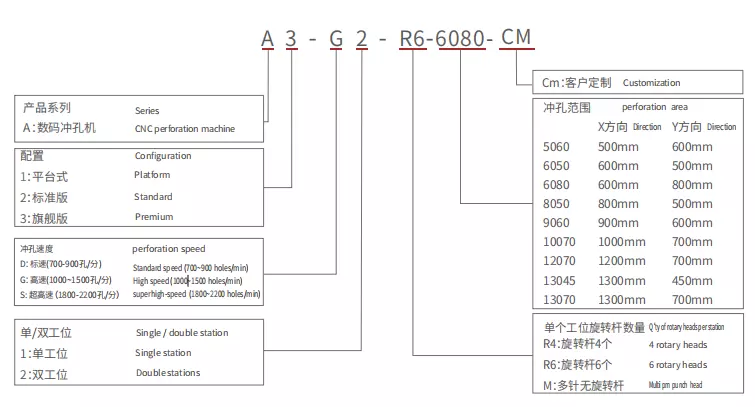

| 型号 Model |
A3-G1-R4 | A3-G2-R4 | A3-G1-R6 | A3-G2-R6 | A3-D2-M |
| 型号说明 Model Specification |
单工位四冲杆高速机 1station4 heads Highspeed |
双工位八冲杆高速机 2 stations8 heads High speed |
单工位六冲杆高速机 1 station6 heads Highspeed |
双工位十二冲杆高速机 2stations 12 heads Highspeed |
多针冲孔机 Multipintype |
| 冲孔速度(孔/分钟) perforation speed(holes/min) |
1320 | 1320x2 | 1320 | 1320x2 | 700XN |
| 冲杆数量(pcs) Head quantity |
4 | 4x2 | 6 | 6x2 | 1~20 |
| 旋转杆数量(pcs) Rotary head quantity |
4 | 4x2 | 6 | 6x2 | / |
| 孔径范围(mm) Hole size |
0.8~12 | 0.8~12 | 0.8~12 | 0.8~12 | 0.8~3 |
| 材料厚度(mm) Material thickness |
1~6 | 1~6 | 1~6 | 1~6 | 1~6 |
| 冲孔精度(mm) perforation precision |
土0.1 | 士0.1 | 士0.1 | 土0.1 | 0.1 |
| 机器功率(kW) Machine power |
220V/1.5kW | 220V/2.5kW | 220V/1.5kw | 220v/2.5kW | 220V/2.5kW |
| 电源频率(Hz) Power frequency |
50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| 压缩空气(bar) Compressed air |
5~6 | 5~6 | 5~6 | 5~6 | 5~6 |
| 机器净重(kg) Machine net weight |
930 | 1570 | 940 | 1650 | 1750 |
| 机器毛重(kg) Gross weight |
1030 | 1670 | 1040 | 1750 | 1850 |
| 机器尺寸(mxmxm) Machine size |
1.80x1.51x1.60 | 2.38x1.73x1.73 | 1.80x1.51x1.60 | 2.54x1.73x1.73 | 2.34x1.73x1.70 |
| 木箱尺寸(mxmxm) Wood packing size |
1.90x1.61x1.80 | 2.48x1.83x1.93 | 1.90x1.61x1.80 | 2.64x1.83x1.83 | 2.44x1.83x1.90 |
